Sidescan Data Samples |
| |
Below are data samples we currently have for
OIC-supported analog sidescan sonars. We will be adding to this
list as new data become available. |
| |
|
| |
ORKNEY ISLANDS, UK |
| |
The C-MAX CM 800 sidescan is made by C-MAX
Ltd., of Dorset, UK. |
| |

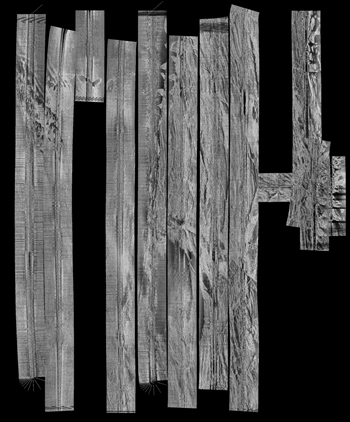

Shown is sidescan sonar mosaic of data acquired off the Orkney
Islands, by Matt French of Fathoms, Inc. |
| |
|
| |
ALA WAI CHANNEL, HONOLULU,
HI |
| |

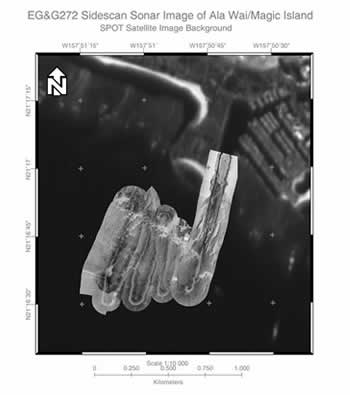

The EG&G 272/260 dual frequency, analog sidescan
was manufactured by EG&G Marine Instruments of Massachusetts,
USA. EG&G Marine instruments is now doing business as EdgeTech,
with offices in Massachusetts and Florida. |
| |
 |
| |
EG&G sidescan data collected with GeoDAS-PC
were processed at 30-cm resolution and superimposed over the
SPOT satellite image in ER Mapper. |
| |
|
| |
ST JOHNS, US VIRGIN
ISLANDS |
| |

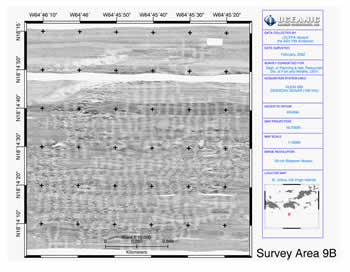

The Klein 595 sidescan/sub-bottom system was
made by Klein
Associates, Inc., of Nashua, New Hampshire. |
| |
 |
| |
Sidescan data were collected by US EPA as
part of fish habitat survey.
25 lines of mosaic images were created at 20-cm resolution
in GeoDAS-Desktop and collaged together in ER Mapper. |
| |
|
| |
ROCK AREA #3, DELAWARE
RIVER, NJ |
| |

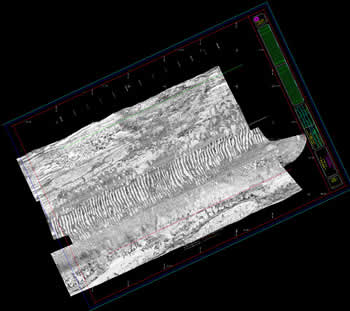

The Klein 2000 sidescan system was made by Klein
Associates, Inc., of Nashua, New Hampshire. |
| |
 |
| |
Data were collected by US Army Corps of Engineers
Philadelphia District.
Original data stored in Klein format were converted to OIC
format and processed in OICToolkit on UNIX. Then line-by-line
mosaic images (10-cm resolution) were created in GeoDAS-Desktop
and collaged together in ER Mapper. AutoCAD DXF file were
superimposed over the sidescan image in ER Mapper. |
| |
|
| |
COUNTLESS OF URNE IN
PORTLAND HARBOR, UK |
| |
The Widescan II dual-frequency (100 and 325 KHz)
analog sidescan was made by Ultra
Electronics, of Weymouth, England. |
| |
 |
| |

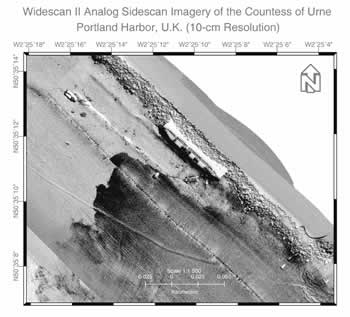

Widescan II Analog sidescan image of the Countess
of Urne, in Portland Harbor. Sidescan data were processed
at 10-cm resolution in GeoDAS-Desktop and map annotations
were added in ER Mapper.
