| Klein
3000/5000 |
| |

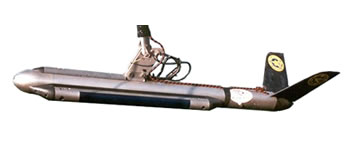

The Klein 3000 sidescan system is made by
Klein Associates,
Inc., of Salem, New Hampshire. Klein recently became
part of the L3 Communications group.
The 3000 offers dual frequency (132 and 445 KHz) digital
sidescan recorded at 12 bits dynamic range, at approximately
25KHz. |
| |
 |
| |

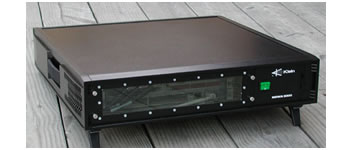

The Klein 3000 sidescan is interfaced to the
Klein 3000 TPU (19" 3U rack-mount unit) for power and data communications.
Control and display is provided by software (GeoDAS-PC) running
on a networked PC workstation or laptop for control of range,
gain and power. For more information on the Klein 3000 sidescan,
click
here. |
| |
 |
| |
OIC supports the Klein-3000 sidescan (analog
output) via GeoDAS-PC/K5K providing
a full control, logging and real-time processing solution. For
details, see the GeoDAS section of
our web page. |
| |
 |
| |

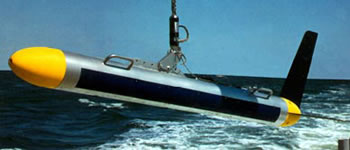

The Klein 5000 series is a multibeam sidescan
capable of forming multiple, simultaneous beams for each ping,
resulting in greater along-track coverage and higher operating
speeds. It operates at 455 KHz. For details click
here.
The Klein-3000 can also be operated with Klein-supplied SonarPro
software, to record data in their native "SDF" format, or
"XTF" format. These data files can be converted and post-processed
by OIC products including GeoDAS-Desktop,
OICToolkit and OICcleansweep.
For examples of mosaics created by OIC software with Klein-3000
data, please see our Data
Samples page. |
|
|
