CleanSweep: Data Processing and Visualization
CleanSweep provides a fast, user-friendly environment for processing hydrographic survey data and production of high-quality final products.
- High-Performance imagery processing for precise geocoding and contact identification

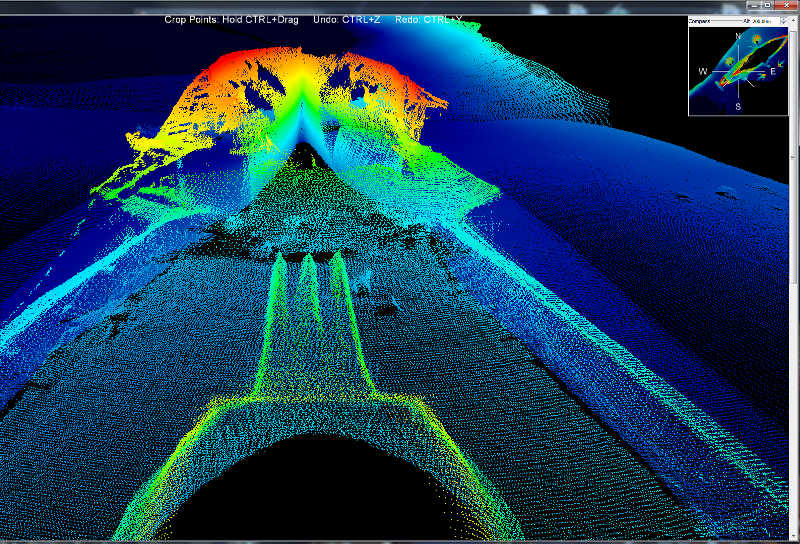

- Advanced multi-beam and interferometry processing package include 3D editor
- Feature-based navigation correction tools essential for AUV and towed surveys

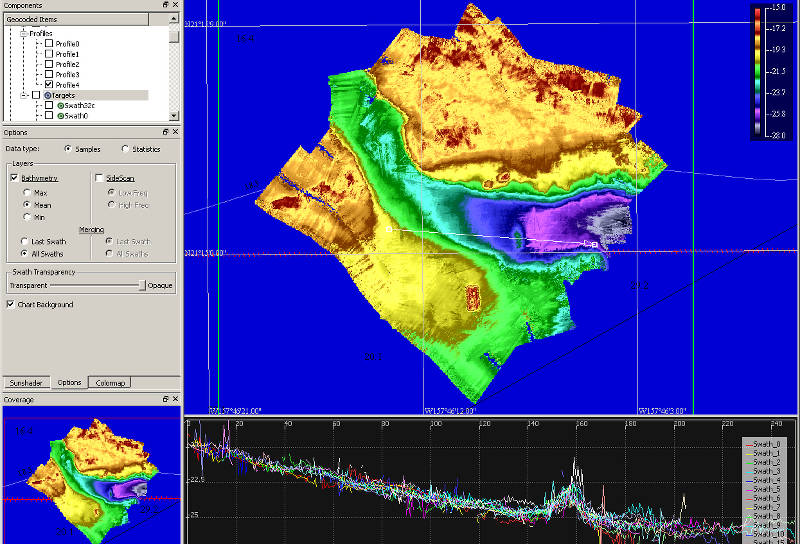

- Interactive GIS-Like interface for intuitive processing and quality control
- English, Chinese and Japanese language support
Data Processing Features:
Accurate Positioning:
- Exclusive Feature-based navigation tools
- Automated bias and latency calibation tools
- Smoothing, de-spiking, and manual editing capabilities
- Versatile navigation settings provide support for all surveys, including AUV, deep-towed and submersibles
Seamless Processing:

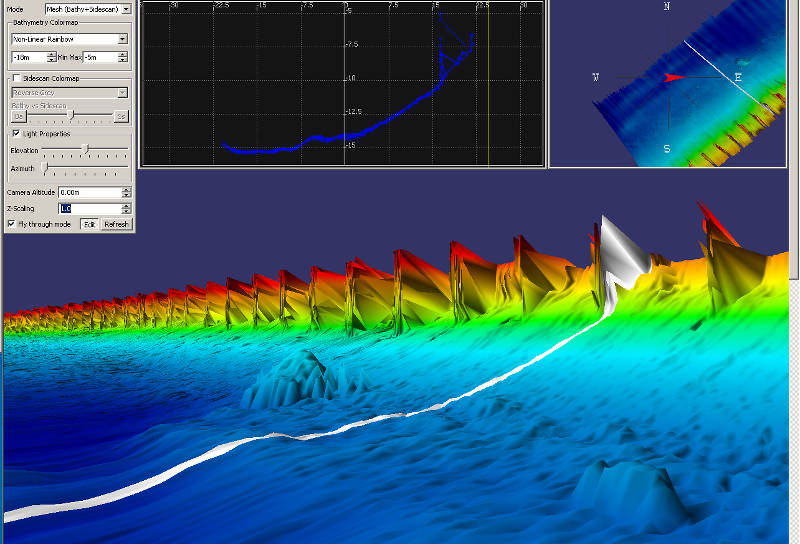

- Connected 2D/3D data processing capability
- Attitide, tide and refraction corrections
- Full access to sensor samples quality flags
Visualization Features:
Integrated Solutions

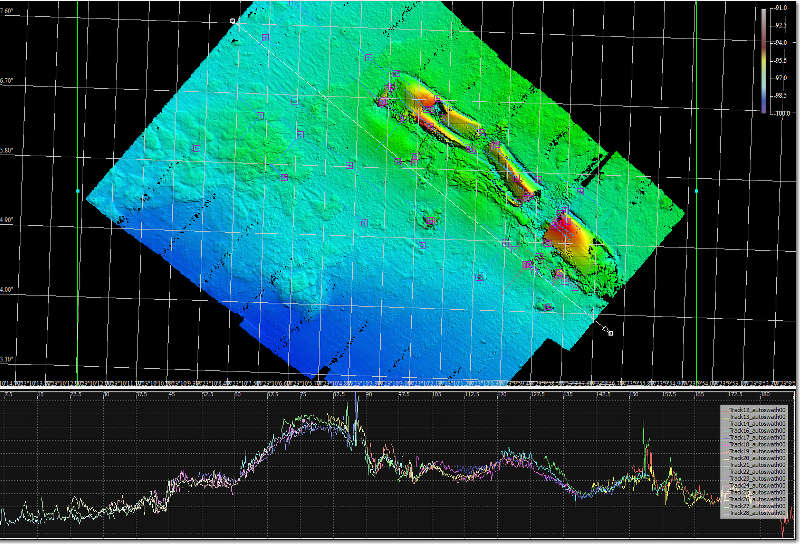

- Bathymetry, imagery and 2D/3D spacial analysis all in one package
- Linked temporal and spacial views for easier QC and interpretation

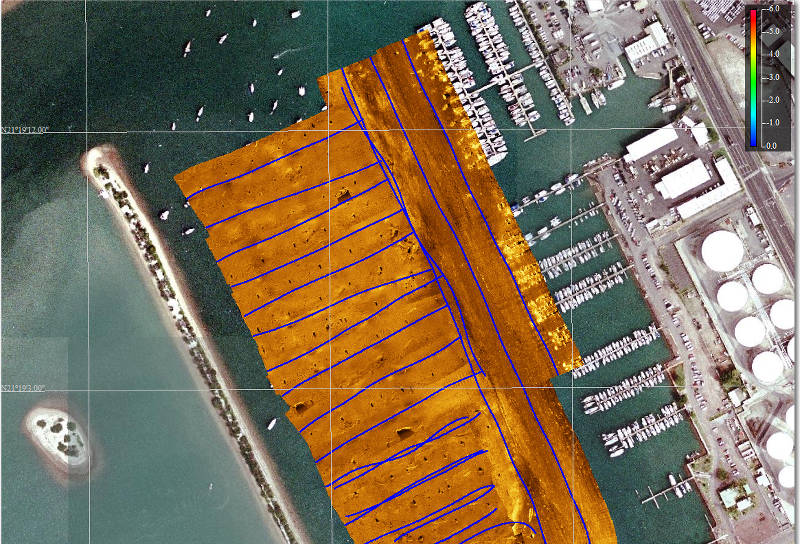

- Support virtually ALL imagery/bathymetry data format and a wide variety of charts/background formats e.g. DNC, ENC, BSB, jpeg, DXF, ShapeFiles, Grids, ASCII, etc.

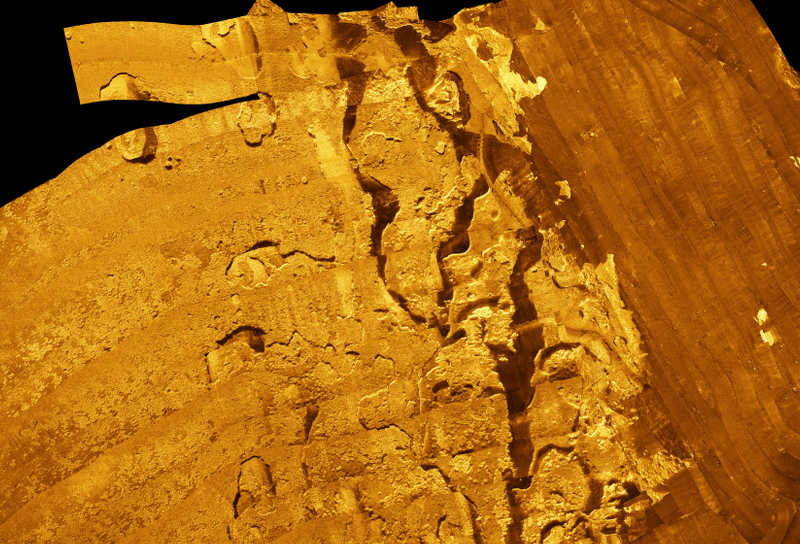

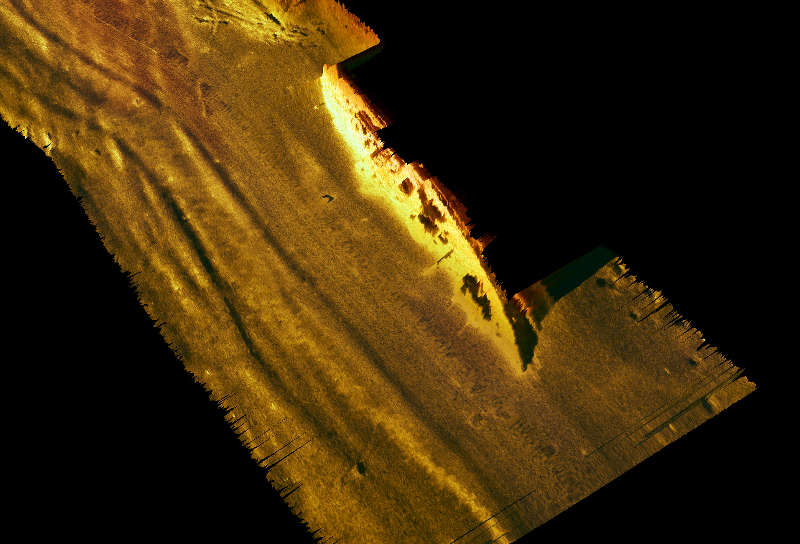

Superior Imagery:
- Powerful processing tools make CleanSweep the benchmark fro production of high-quality imagery
- Robust automatic bottom tracking algorithm
- Along-and-across track gain equalization algorithm
Advanced Targeting:

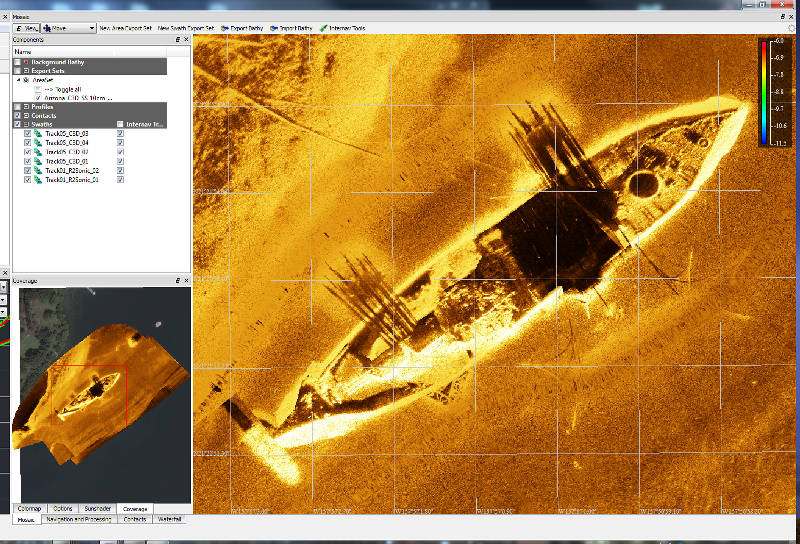

- Target database provides an intuitive interface for mensuration and classification
- Create comprehensive HTML, XML, CSV exports for inclusing in survey reports
- Along-and-across track gain equalization algorithm
Multiple Outputs:
- Export options include ASCII xyz, llZ, GeoTIFF 8/24 bit, GRD grid, ESRI grid, ESRI geodatabase, OIC grid, printer ready PostScript, Generic Sensor Format, etc.
Video Tutorials
GeoSwath Interferometry Processing - Part 1 (5 min)
this tutorial video will walk you through the inital project setup, data loading, coverage map view, waterfall view and basic contacts marking/measurement features.
GeoSwath Interferometry Processing - Part 2 (5 min)

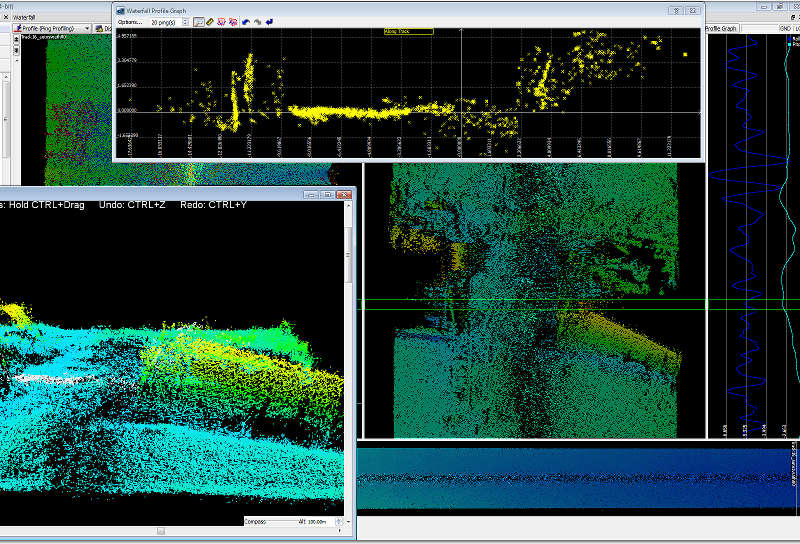

This tutorial video will walk you through bathymetry data cleaning using CleanSweep 2D and 3D editors .
GeoSwath Interferometry Processing - Part 3 (14 min)
This tutorial video will walk you through mosaic creation, imagery processing and GIS output
