SAMM: version 2.13.1502

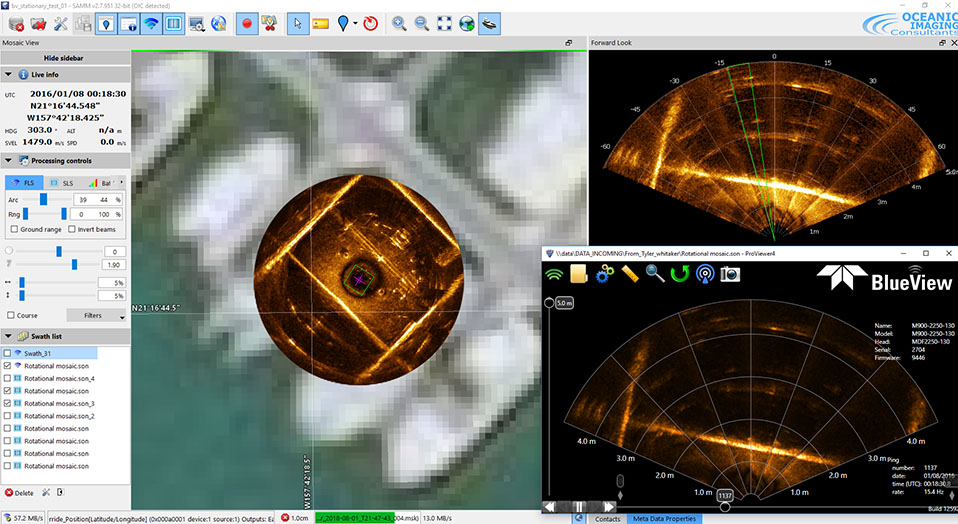

Our Stand-Alone Mosaicking Module for Sidescan and Forward-Looking Sonar!
- Easy to Use Plug-and-Play Add-on to Your Sidescan and Forward Look Sonar

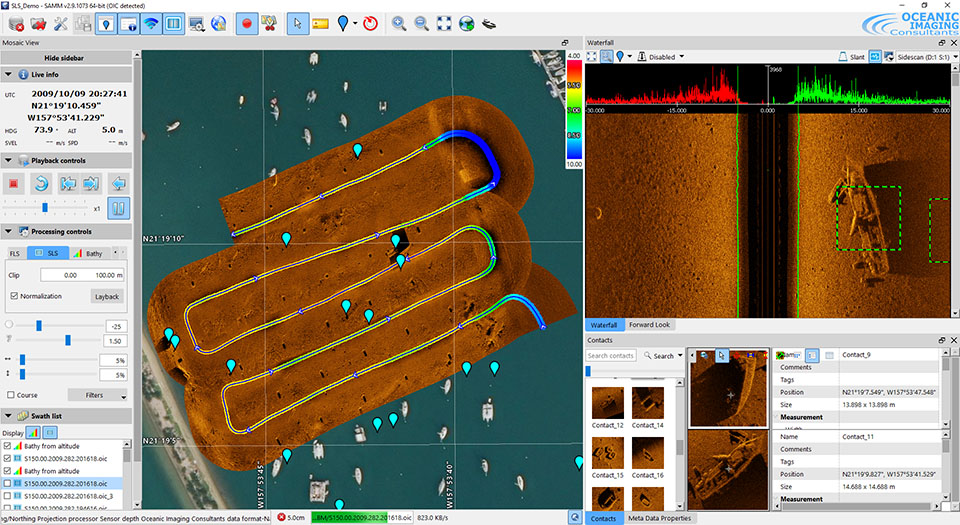

- Automatically Creates Mosaics in Real Time from Sonar Data
- Automatically Loads Background Charts or Imagery for Easy Geo-Referencing
- Supports Post-Processing, Swath Layering, Imagery Enhancement and Export

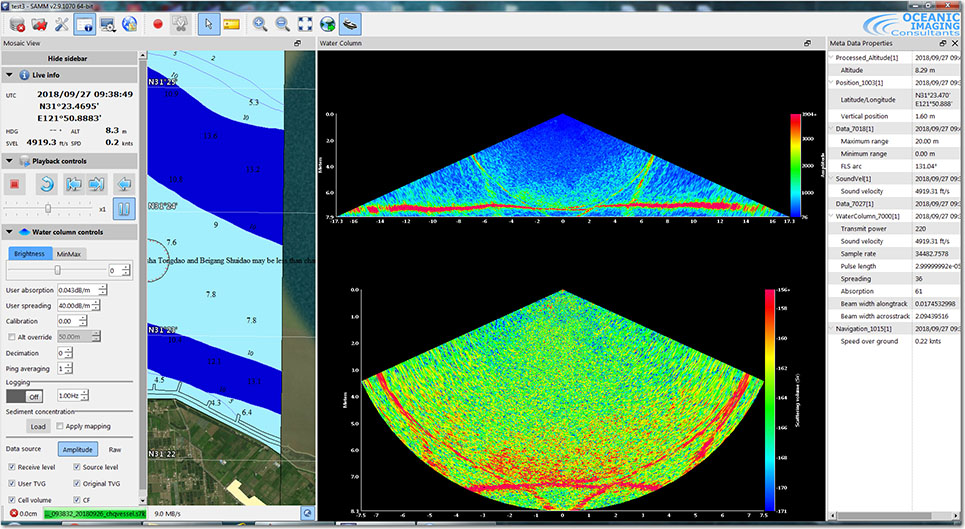

- Water Column Data Analysis
- Generation of Bathymetry Map from Altitude Data; XYZ Import and Export
- Sidescan Bottom Tracking; Automatic and Manual
- Smoother of Navigational Meta-Data; Position, Heading and Altitude
Data Acquisition Features:
- Stand-alone module, seamlessly compatible with your existing FLS/SLS system
- Interactive control of track layering, processing and sensor offsets
- Simultaneous mosaicking and logging of broadcast data; NMEA broadcast of targets
- Pan, zoom, target marking and vessel track; mission planning module
- Simultaneous sidescan and gapfill support
Post-Acquisition Processing Features:
- InterNAV, feature based navigation tools
- Sensor/navigation offset and bias corrections
- Instant reprocessing and editing of recorded data
- Easy image export to GeoTIFF and Google Earth / Map tiles
- Per-track adjustment of gamma and brightness
- 16-bit imagery support for optimum image resolution
- Contact marking, measurement, classification and export
- Layering of individual tracks for optimal mosaic composition
- Background display of air photos, satellite imagery, raster and vector charts
Supported Sonar Systems
| Tritech | Gemini 720ik Gemini 720im Gemini 720is Gemini 1200ik |
| Teledyne BlueView | P450/M450 P900/M900 P900-2250/M900-2250 BV3100 BV3200 BV4100 BV5000 |
| Kongsberg Mesotech | M3 MS1000 Flexview PulSAR |
| R2Sonic | R2Sonic 2020(FLS) R2Sonic 2022(FLS) R2Sonic 2024(FLS) R2Sonic 2026(FLS) |
| Sound Metrics | SoundMetrics ARIS |
| Marine Electronics | Dolphin Seaview |
| BluePrint Subsea | Oculus M370s Oculus M750d Oculus M1200d Starfish 450f Starfish 452f Starfish 990f Starfish 450H Starfish 453 OEM |
| Klein Marine Systems | System 3000 System 3900 System D3500TF System 4000 System 4900 System 5000 V2 System 5900 Hydrochart 3500(Sidescan) Hydrochart 5000(Sidescan) |
| EdgeTech | 4125 4205 6205s(Sidescan) |
| Imagenex | 881L 882-GS YellowFin |
| GeoDAS | HMS-1400 Benthos C3D(Sidescan) Imagenex Yellowfin Datasonics SIS-1502 Many more!!! |
| Playback Supported Data Formats | Reson/Norbit .s7k Sound Metrics Didson .ddf Marine Sonic .sds C-Max .cm2 Humminbird .dat Sonardyne Solstice .swf .xtf |
